Blackmagic

This plug-in adds functionalities to work with Blackmagic Design cards.

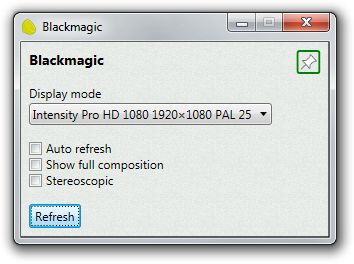

Mirror

The plug-in adds a mirror, that sends the monitor image to a Blackmagic card.





Auto refresh

If enabled, the mirror refreshes the image each time the monitor changes.

If disabled, the mirror is refreshed only when "refresh" is clicked.



Show full composition

If enabled, the mirror shows all the layers of the image. This is, background, movie, subtitles and overlays. This option makes the refresh slower.

If disabled, the mirror only shows the subtitles layer.



Stereoscopic

If enabled, the mirror displays both images. The monitor must be set to stereoscopic as well.

Checkerboard mode is not supported in the current version of the driver.



Refresh

Refreshes the mirror image.



Clear

Clears the mirror image.



Topmost

Keeps the dialog on top of other windows.
